Profiling with VTune

This documentation is intended to help you configure Sassena and to profile its performance by using profiling tool Intel VTune Profiler.

Goals

  1. To help installing Sassena

  2. To help installing Intel Basic oneAPI Toolkit

  3. To help using VTune for profiling Sassena

Intel oneAPI Base Toolkit

  • The Intel® oneAPI Base Toolkit comprises a set of libraries and implementations for developing High-Performance applications in a range of different computer architectures.

  • VTune and Advisor were used for profiling the Sassena code with different setups of MPI cores and threads/core. Below, a quick instruction on the prerequisites and installation of the Intel® oneAPI Base Toolkit for Linux system applications are given. For a detailed and complete guide about the Intel® oneAPI Base Toolkit, please check out here.

Profiling with VTune GUI

  • Within the Intel oneAPI Base Toolkit is VTune, which can be used for profiling HPC applications in C/C++ such as Sassena.

  • VTune can be set by a Graphical User Interface (GUI) on Linux OS:

  1. Open the terminal and type: vtune-gui

  2. Once the VTune GUI pops up, follow the steps below:

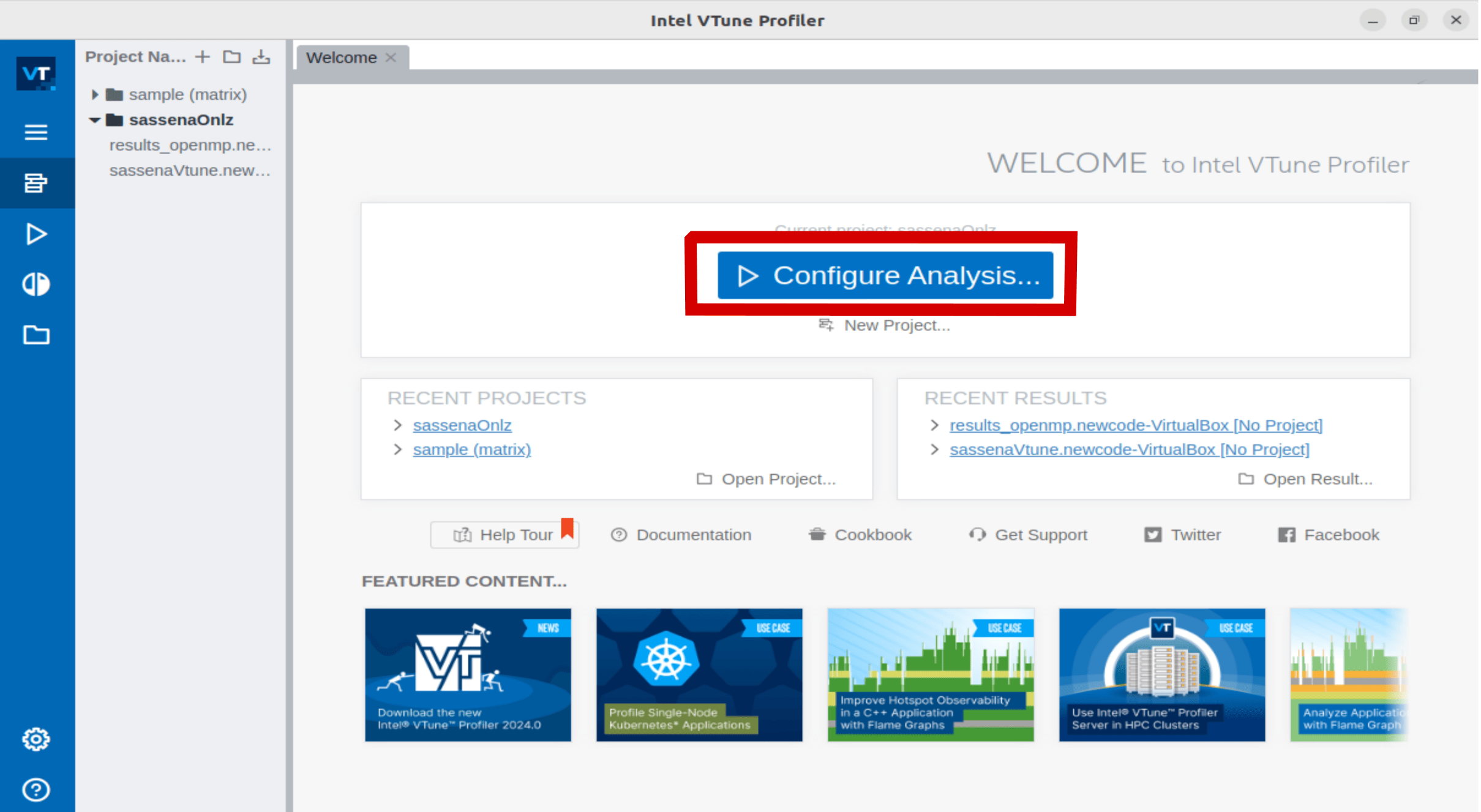

Step 01 - Start a new project by clicking on Configure Analysis

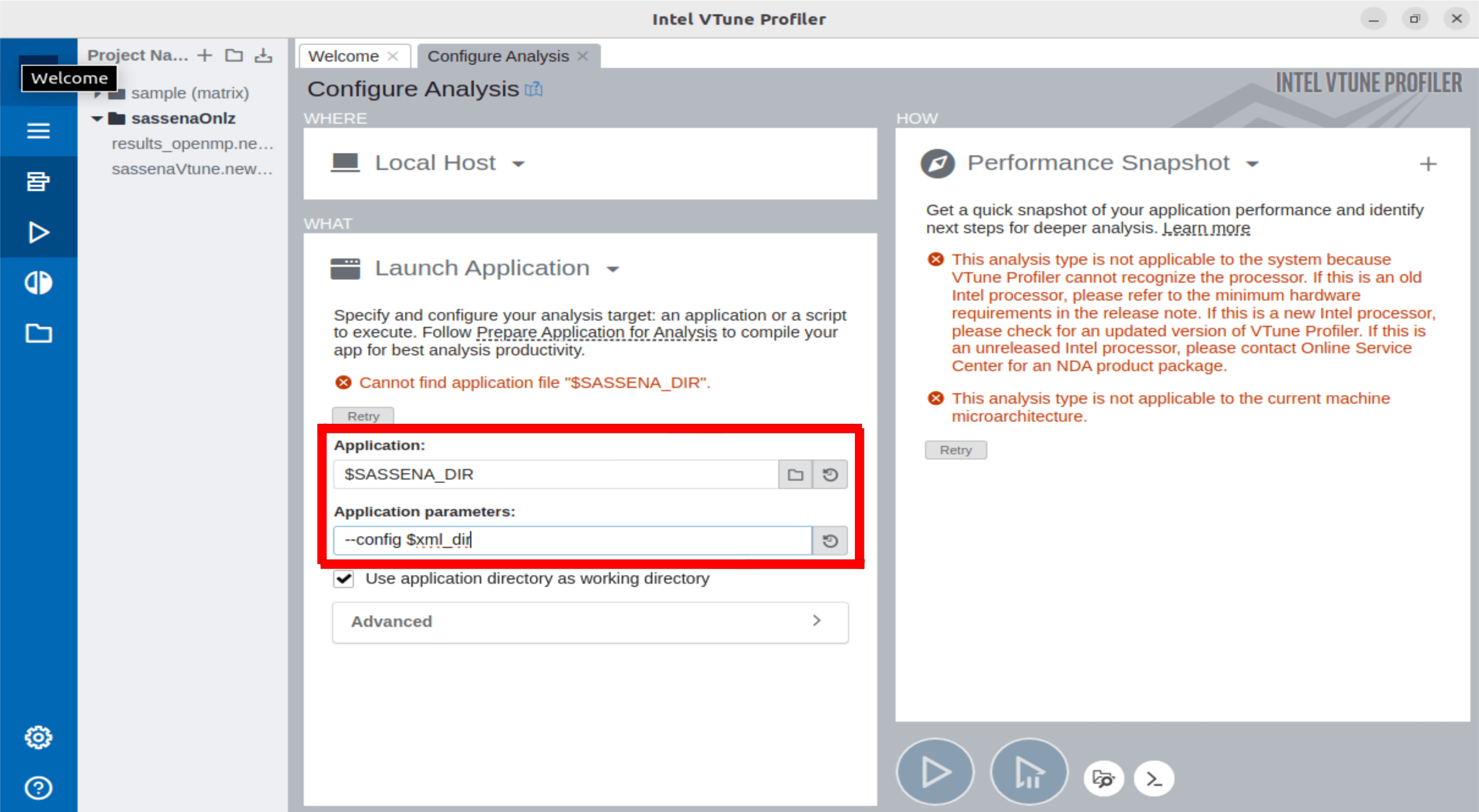

Step 02 - Set paths for Application and Application Parameters

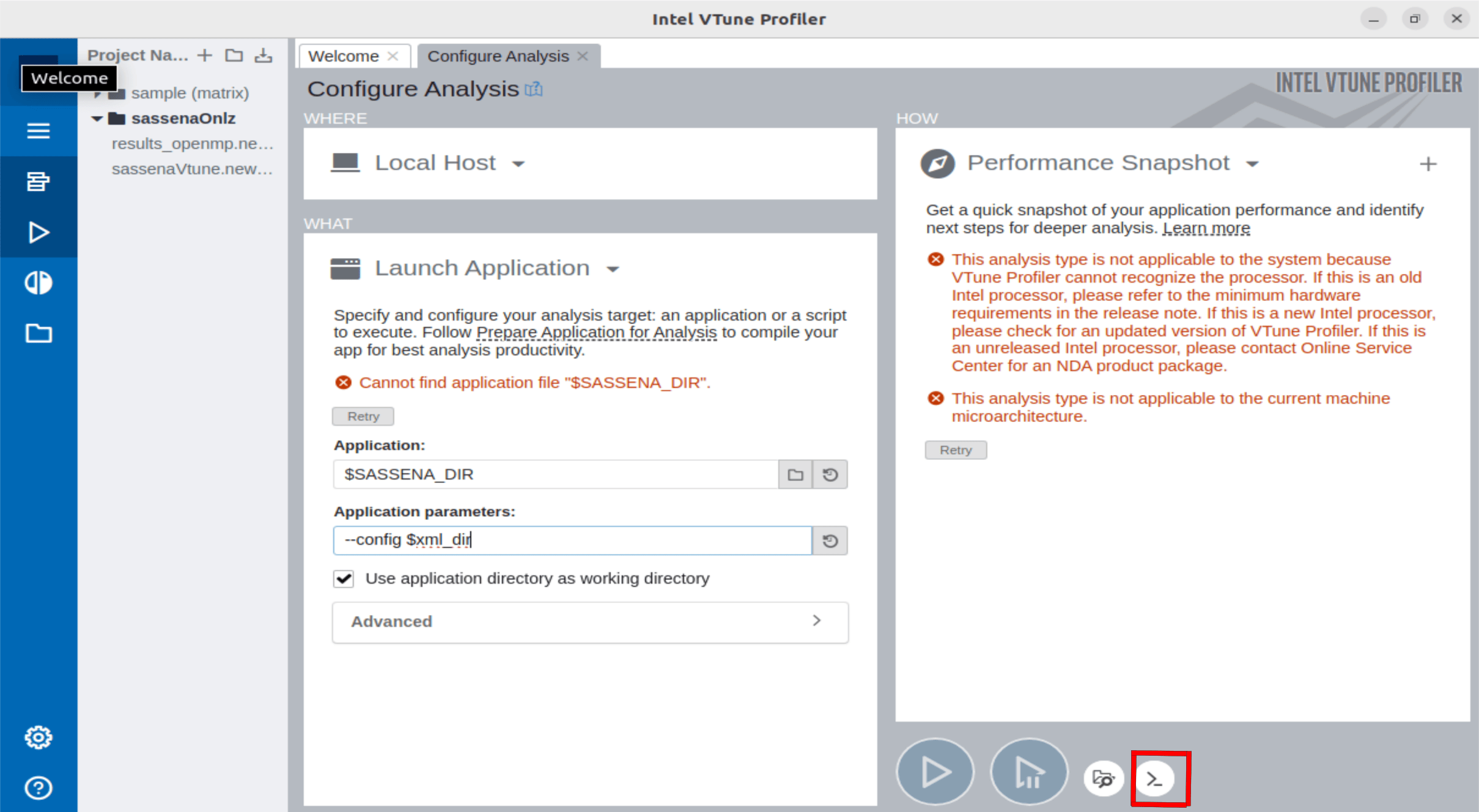

Step 03 - Click the most right-bottom button and copy the command to run VTune with MPI




  1. Write the following parameters in Step 02:

    • Application: global path of sassena binary application in compiler folder

    • Application parameters: --config <global path of xml_file>

  2. Open the terminal and paste the command copied from Step 03 in the following way:

    • mpirun -np {Number of Cores} {paste here the command from step 03}

  • VTune with MPI only - Command Example:

    • mpirun -np 8 /opt/intel/oneapi/vtune/2024.0/bin64/vtune -r /intel/vtune/projects/sassenaVtune/res_cohe2 -collect threading -target-duration-type=medium -data-limit=10000 -trace-mpi --app-working-dir=/home/newcode/intel/vtune/projects/sassenaVtune -- /home/newcode/projects/helmholtz/sassena/compile_debug/sassena --config /home/newcode/projects/helmholtz/sassena/coherent/n_str_coh.xml

  • VTune + MPI with Threads Limitation - Command Example:

    • mpirun -np 8 /opt/intel/oneapi/vtune/2024.0/bin64/vtune -r /intel/vtune/projects/sassenaVtune/res_cohe2 -collect threading -target-duration-type=medium -data-limit=10000 -trace-mpi --app-working-dir=/home/newcode/intel/vtune/projects/sassenaVtune -- /home/newcode/projects/helmholtz/sassena/compile_debug/sassena --limits.computation.threads=2 --config /home/newcode/projects/helmholtz/sassena/coherent/n_str_coh.xml
